1. Installation & Usage Guide

⚙️ Installation

1. Prerequisites:

  • Python ≥ 3.9
  • pip, git
  • (Optional): DVC, MLflow, Streamlit, Airflow/Dagster, Docker

2. Clone the repository:

git clone https://github.com/your-org/retail-forecast-system.git
cd retail-forecast-system

3. Create and activate virtual environment:

python -m venv .venv
source .venv/bin/activate

On Windows:

.venv\Scripts\activate

4. Install dependencies:

pip install --upgrade pip
pip install -r requirements.txt

5. (Optional) Install extra tools:

pip install dvc mlflow streamlit

6. Set up .env file for credentials, DB, API keys

cp .env-example .env

🛠 Usage

1️⃣ DVC Pipeline

Run the full pipeline (from raw data to output, all stages auto-tracked):

dvc repro
  • Runs every stage in dvc.yaml .
  • Outputs, models, metrics, and plots are versioned and reproducible.

Run a specific stage:

dvc repro feature-engineering
dvc repro train-xgboost

Visualize pipeline DAG:

dvc dag

2️⃣ Dagster Pipeline

Run with Dagster (for orchestration, monitoring, and visualization):

dagster dev

Example CLI:

dagster job execute --job-name train_xgboost
dagster asset materialize --select feature_engineering

Requires code mapping between pipeline stages and Dagster assets/jobs.

3️⃣ Python CLI / Typer

Manually run each stage (for debugging, dev, or running small parts):

# Load data
python main.py load-data load-data --end-date 250630

# Preprocess: transform, cluster, filter
python main.py preprocess transform --input-file sales.csv --holiday-file holidays.csv --output-file transformed.csv
python main.py preprocess cluster-model --input-file transformed.csv --output-file data_clustered.csv --visualize
python main.py preprocess filter-data --input-file data_clustered.csv --output-file filtered.csv

# Feature engineering
python main.py feature-engineering feature-engineering --input-file filtered.csv --holiday-file holidays.csv --max-workers 8

# Train models (XGBoost/LightGBM/Prophet)
python main.py train batch-train --input-file train.csv --holiday-file holidays.csv --model-type xgboost --max-workers 8
python main.py train batch-train --input-file train.csv --holiday-file holidays.csv --model-type lightgbm --max-workers 8
python main.py train batch-train --input-file train.csv --model-type prophet --max-workers 8

# Predict
python main.py predict batch-predict --file-train train.csv --max-workers 8

# Reconcile (hierarchical forecast)
python main.py reconcile reconcile --input-file batch_forecast_results.csv --output-file reconciled_forecast_hierarchical.csv

4️⃣ Serving and Visualization

  • API serving:
uvicorn api.main:app --reload

Access Swagger UI at http://localhost:8000/docs

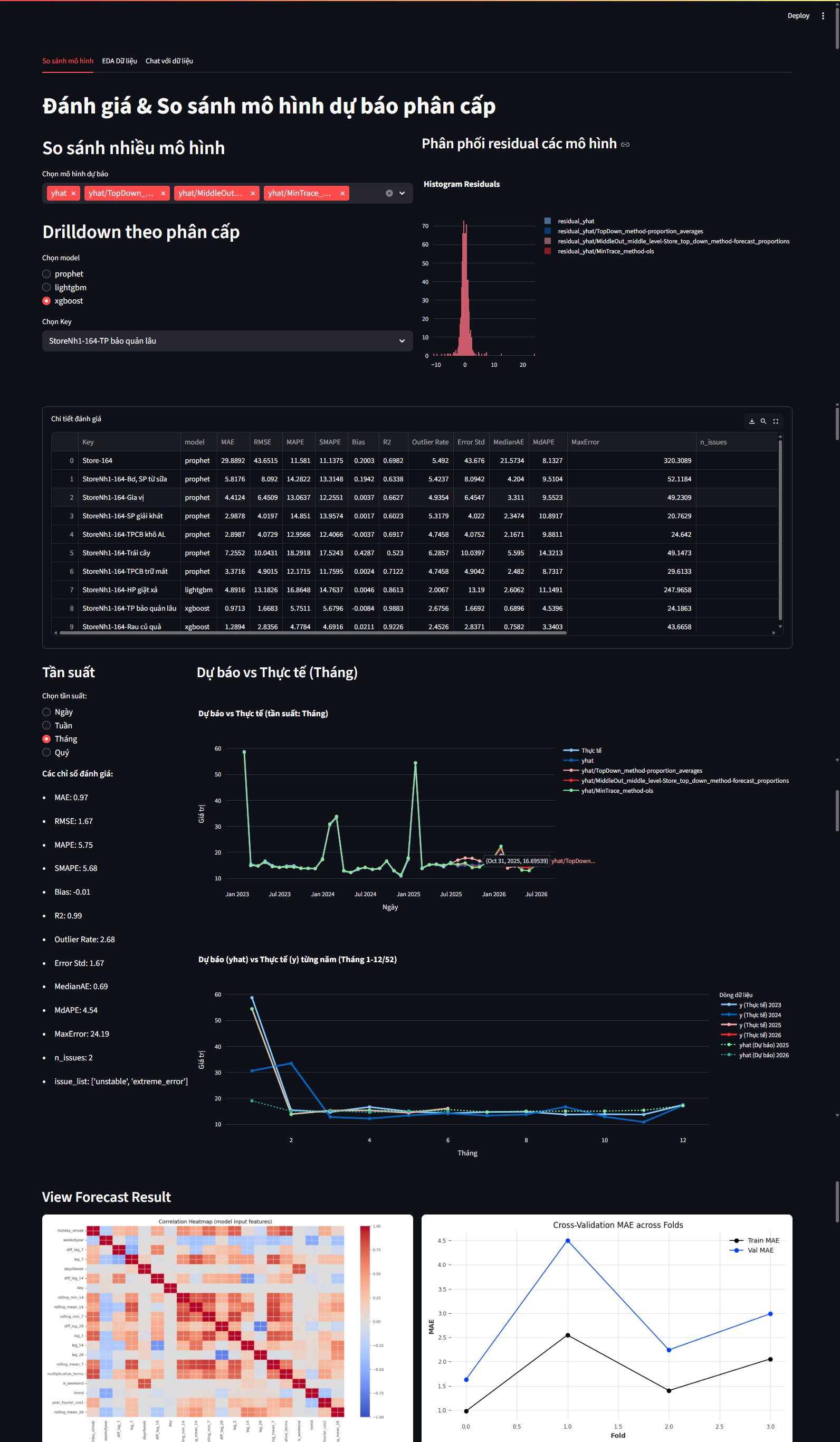

  • Dashboard (Streamlit):
streamlit run app/app.py

Workflow image

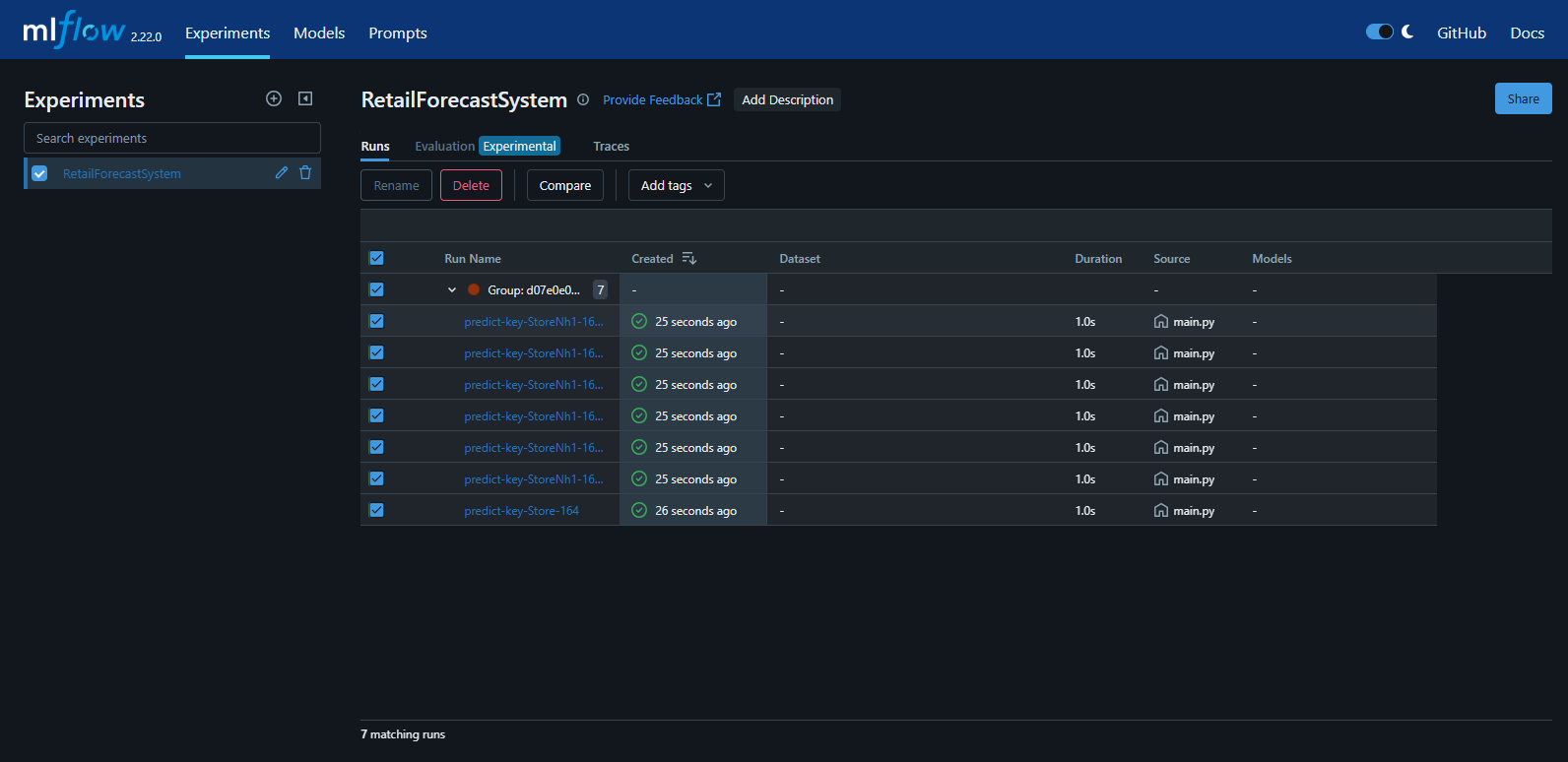

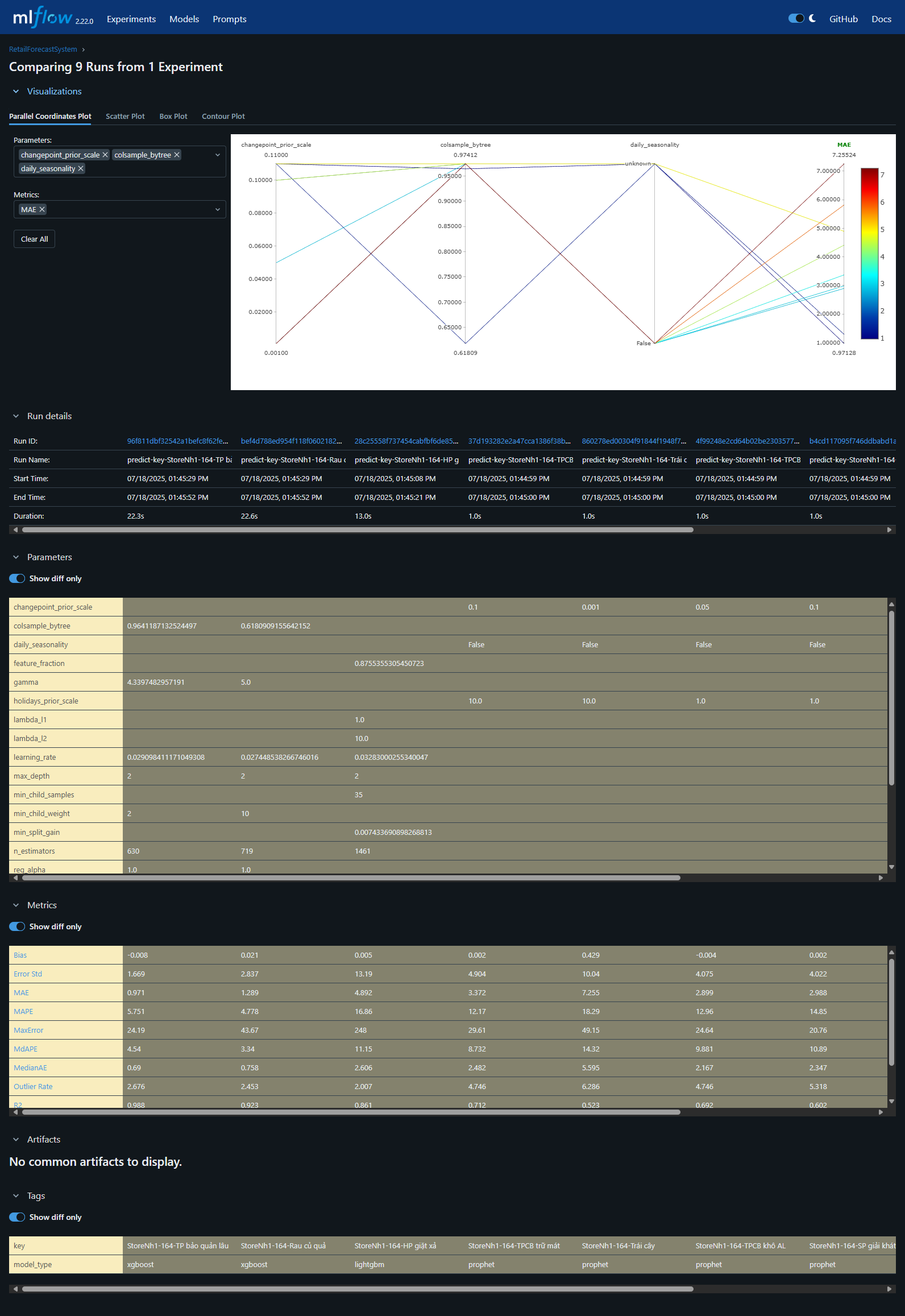

  • Experiment tracking (MLflow):
mlflow ui

Open http://localhost:5000 for experiment history Workflow image Workflow image

  • Notebook EDA/prototyping:
jupyter notebook

5️⃣ Documentation Site

View docs:

pip install mkdocs
mkdocs serve

2. Project Directory Structure

🚀 Features

  • Automated, reproducible ML pipeline (data to deployment)
  • Advanced feature engineering (time, lag, statistics, business, TSFresh, LLM-augmented)
  • AutoML and hyperparameter tuning (Optuna/GridSearch)
  • Clustering for model specialization (KMeans, GMM)
  • Flexible model selection: Prophet, XGBoost, LightGBM, LLM-RAG
  • Multi-step and hierarchical forecasting: recursive, direct, hybrid, reconciliation (Bottom-up, Top-down, Middle-out, OLS, MinTrace)
  • Explainability: SHAP, LLM auto-diagnosis, reporting
  • MLOps: MLflow (metrics, models), DVC (data versioning), Airflow/Dagster (orchestration), FastAPI (serving), Streamlit (visualization)
  • Batch & real-time forecasting
  • Designed for extensibility: easily add new models, features, or data sources

📁 Project Structure

retail-forecast-system/
│
├── airflow/                  # Airflow DAGs for orchestrating data pipelines and batch workflows
│   └── dags/
│       └── system_retail_pipeline.py   # Main Airflow DAG for retail system pipeline automation
│
├── api/                      # FastAPI app – RESTful API endpoints for inference, health check, etc.
│   ├── endpoints.py          # API route handlers
│   ├── main.py               # API app entrypoint
│   ├── schema.py             # Pydantic schemas for request/response validation
│   └── utils.py              # API-specific utilities
│
├── app/                      # Lightweight app front-end or dashboard (e.g. Streamlit, Gradio, etc.)
│   ├── pages/                # Individual app pages (e.g., EDA, visualization)
│   │   └── EDA.PY            # Exploratory Data Analysis dashboard page
│   ├── vectordb/             # Vector DB index files (for embedding, semantic search, etc.)
│   │   └── faiss.index       # FAISS index for fast vector search
│   ├── README.md             # App-specific README/instructions
│   └── app.py                # Main app entrypoint
│
├── config/                   # YAML configuration files for parameters, models, paths
│   ├── config.yaml           # Global project config (paths, globals)
│   └── models.yaml           # Model-specific hyperparameter config
│
├── dagster_pipeline/         # Dagster pipeline definitions (alternative or complement to Airflow)
│   ├── assets.py             # Dagster asset definitions
│   ├── dagster.yaml          # Dagster config
│   ├── jobs.py               # Job orchestration (Dagster)
│   └── schedules.py          # Scheduled jobs (Dagster)
│
├── data/                     # Data storage (DO NOT track raw here if using DVC!)
│   ├── feature-store/        # Feature store for ML training/inference
│   ├── interim/              # Intermediate, cleaned, or transformed data for experiments
│   ├── output/               # Output from batch predictions, evaluations, etc.
│   ├── processed/            # Final/production-ready datasets
│   ├── raw/                  # Immutable raw source data (never edit manually)
│   └── sql/                  # SQL scripts for ETL or data exploration
│
├── docs/                     # Project documentation (Markdown + site output for mkdocs)
│   ├── docs/                 # Main docs in Markdown, organized by topic
│   ├── .gitkeep              # Ensures folder in git if empty
│   ├── README.md             # Documentation for documentation! (Contributing, etc.)
│   └── mkdocs.yml            # mkdocs configuration for static site generator
│
├── mlruns/                   # MLflow experiment tracking (auto-created, ignore unless using MLflow)
│
├── models/                   # Serialized trained models, artifacts, and checkpoints
│   └── .gitkeep              # Keep empty directory tracked by git
│
├── notebooks/                # Jupyter/Colab notebooks (experimentation, prototyping, reports)
│   ├── .gitkeep              # Empty dir marker
│   ├── [1]_EDA.ipynb         # Exploratory Data Analysis notebook
│   ├── [2]_Report.ipynb      # Project summary report notebook
│   └── [3]_Pipeline-model.ipynb  # Modeling/ML pipeline notebook
│
├── rag/                      # Retrieval-Augmented Generation (RAG) code and configs
│   ├── prompts/              # Prompt templates for LLM-driven RAG workflows
│   │   └── file_analysis.yaml# RAG prompt for file analysis
│   ├── chunking.py           # Text chunking utilities for RAG
│   ├── data_loader.py        # Data loading utilities for RAG
│   ├── embedding.py          # Embedding functions/classes
│   ├── llm.py                # LLM interface
│   ├── pipeline.py           # End-to-end RAG pipeline definition
│   ├── prompt_engine.py      # Prompt engineering logic
│   ├── reranker.py           # Result reranking logic
│   ├── retriever.py          # Retrieval utilities
│   └── vectordb.py           # Vector database wrapper
│
├── reports/                  # Generated reports, figures, and output for business/tech
│   ├── figures/              # Visual assets, plots, images for reporting
│   └── .gitkeep              # Keep empty directory in git
│
├── src/                      # Core source code: ETL, ML, feature engineering, modeling, etc.
│   ├── db/                   # Database connection and pipeline modules
│   ├── features/             # Automated/manual feature engineering scripts
│   ├── modeling/             # ML/DL model classes and logic (XGBoost, LSTM, Prophet, etc.)
│   ├── strategies/           # Forecasting strategies: benchmark, multi-step, etc.
│   ├── utils/                # General-purpose utility functions
│   ├── config.py             # Centralized configuration loader/manager
│   ├── cross_validator.py    # Custom cross-validation logic for time series
│   ├── feature.py            # Feature store logic/integration
│   ├── forecast_pipeline.py  # End-to-end forecast pipeline logic
│   ├── load_data.py          # Data loading and parsing logic
│   ├── plots.py              # Visualization utilities for model results
│   ├── predict.py            # Inference logic for predictions
│   ├── preprocess.py         # Data preprocessing/cleaning logic
│   ├── reconcile.py          # Hierarchical reconciliation logic
│   └── train.py              # Training orchestration/entrypoint
│
├── .dvcignore                # DVC ignore patterns for data version control
├── .env                      # Environment variables (never commit secrets!)
├── Dockerfile                # Docker image definition for reproducible builds/deployment
├── Makefile                  # Automate project workflows (train, test, build, lint, etc.)
├── README.md                 # Project overview, usage, and instructions (first file people read)
├── docker-compose.yaml       # Multi-container Docker orchestration (dev/test/prod)
├── dvc.lock                  # DVC pipeline lock file (auto-generated)
├── dvc.yaml                  # DVC pipeline config for data versioning
├── install_ray.bat           # Script to install Ray for distributed processing
├── main.py                   # Project CLI/main entrypoint (run pipelines, apps, etc.)
├── pyproject.toml            # Python project metadata/build config (PEP 518+)
└── requirements.txt          # Python package dependencies (always pin versions for reproducibility)
